ΒΆ Windows 10 | Wired network | PEAP authorization (login and password)
For the proper PEAP communication, it is recommended to import and install the main CA certificate on the computer.

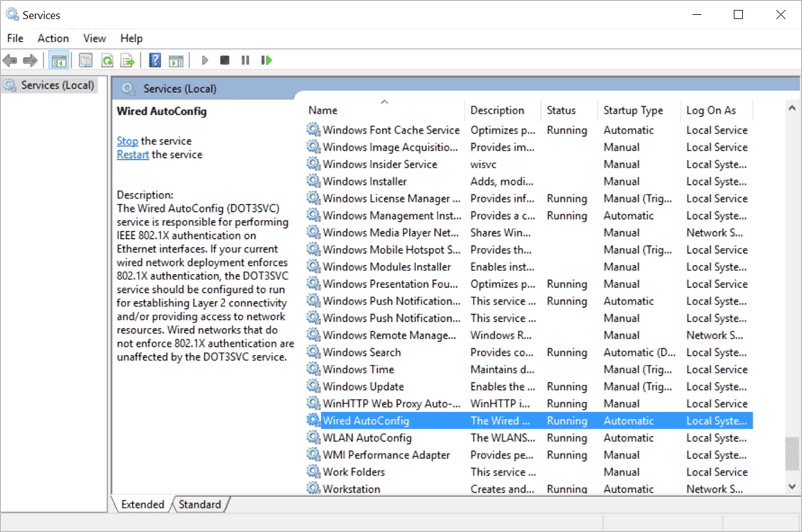

1. Search the Services application in the system and open it.
2. In the list of services, find Wired AutoConfig and double-click it.
3. In the displayed window, in the Startup type field, select Automatic.
4. Click the Start button and confirm with OK.
5. Search the Network and Sharing Center (Control Panel > Network and Internet > Network and Sharing
Center).
6. Select Change adapter options from the left bar.
7. Right click on the wired network you want to configure and enter: Properties.
8. In the displayed window go to the Authentication tab.
9. As the network authentication method, select Microsoft: Protected EAP (PEAP) and click the Settings button.
10. In the next window, set the fields again as shown below.
11. Click the Configure... button and uncheck Automatically use my Windows login name and password (and domain if any).
12. Confirm with the OK button.
13. Confirm again with OK.
14. Go to Additional settings...
15. Select Specify authentication mode and select User authentication from the drop-down list.
16. Click the Save credentials button.
17. In the displayed window enter your username and password.
18. Confirm with OK all your open windows. You can connect it to the network.
